Pedals | VRS DirectForce Pro
From: £200.00
The VRS DirectForce Pro Pedals come with the Pedals Controller and a quality USB cable to plug to your PC (for 3 pedal and 2 pedal sets)
The VRS DirectForce Pro Pedals are designed to maximize your performance on the track. Every screw, every spring, and detail of the pedal’s design has been engineered to extract the best from the world‘s fastest sim racers and VRS coaches. Our revolutionary rodless throttle design eliminates friction while the unique brake pedal will deliver the most consistent feel across a huge adjustment range. Overall, the VRS DirectForce Pro Pedals will give you the ultimate sim racing experience.

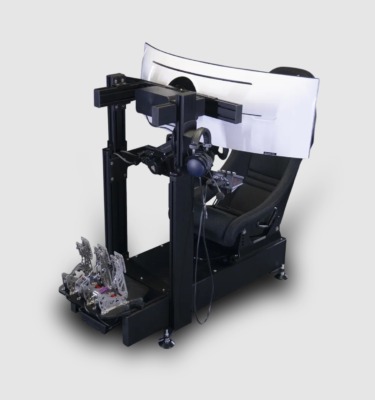

Consider the Ultimate+ Baseplate if you are looking for a solution to mount these pedals to your rig: https://www.apexracingsim.com/shop/ultimate-baseplate-heusinkveld/
- FEA optimized laser cut stainless steel construction to minimize weight
- Extensive pedal face adjustability, including height, angle, and depth
- Coil springs for consistent and friction-free response
- Custom PTFE inserts for even smoother operation
- Pedal-arm mounted load cells reduce the mounting footprint
- Shielded and flanged ball bearings, eliminating free-play from the construction

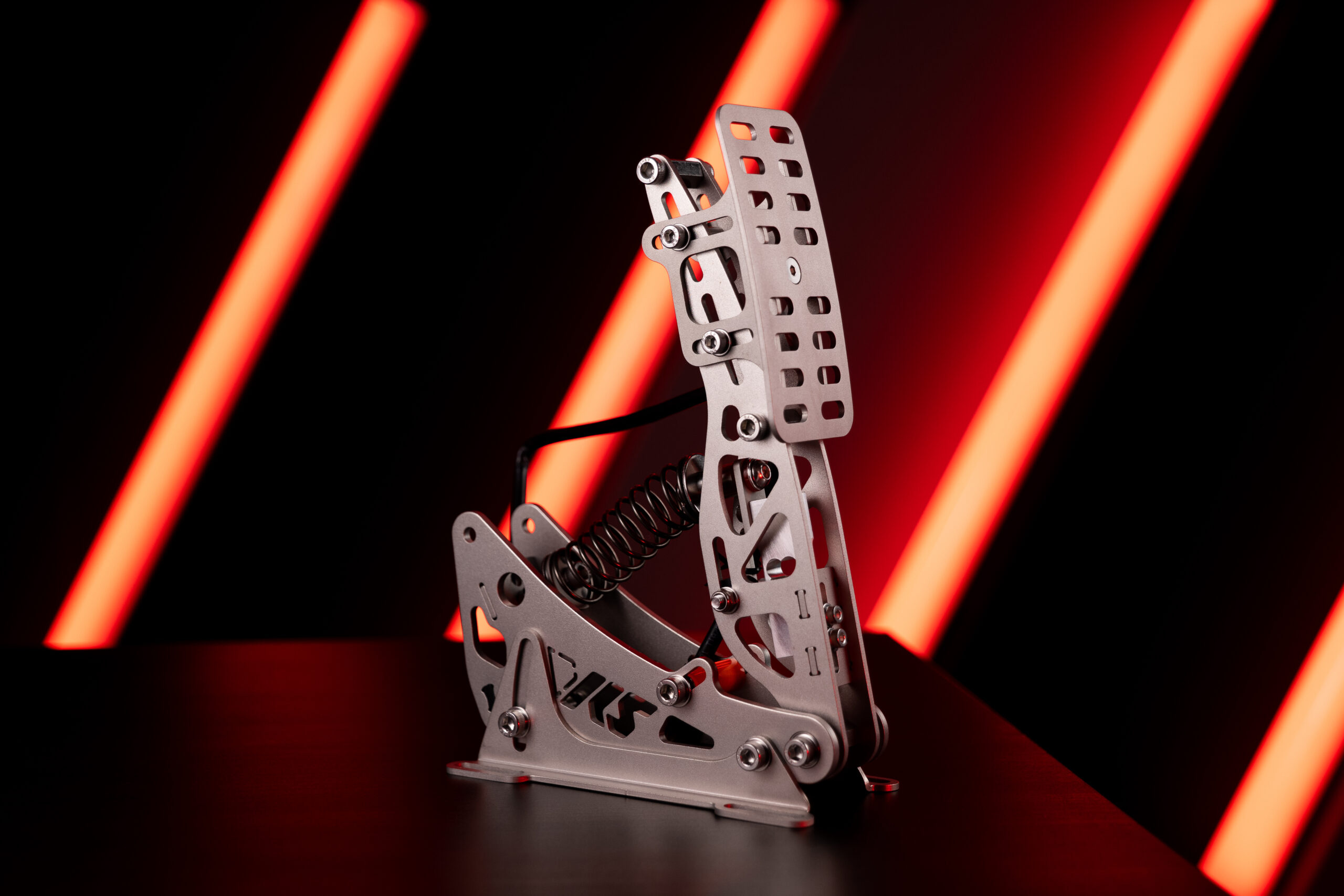

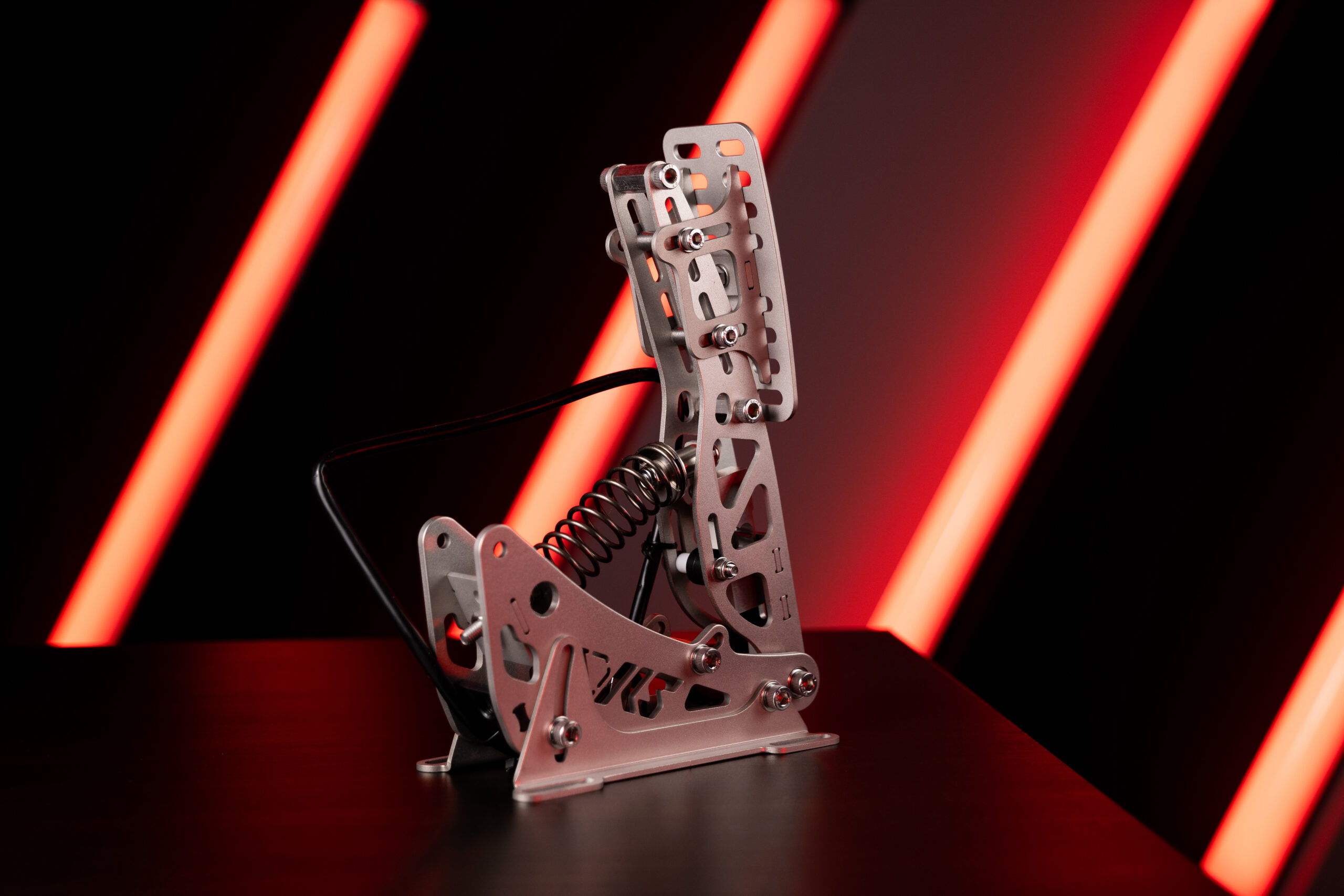

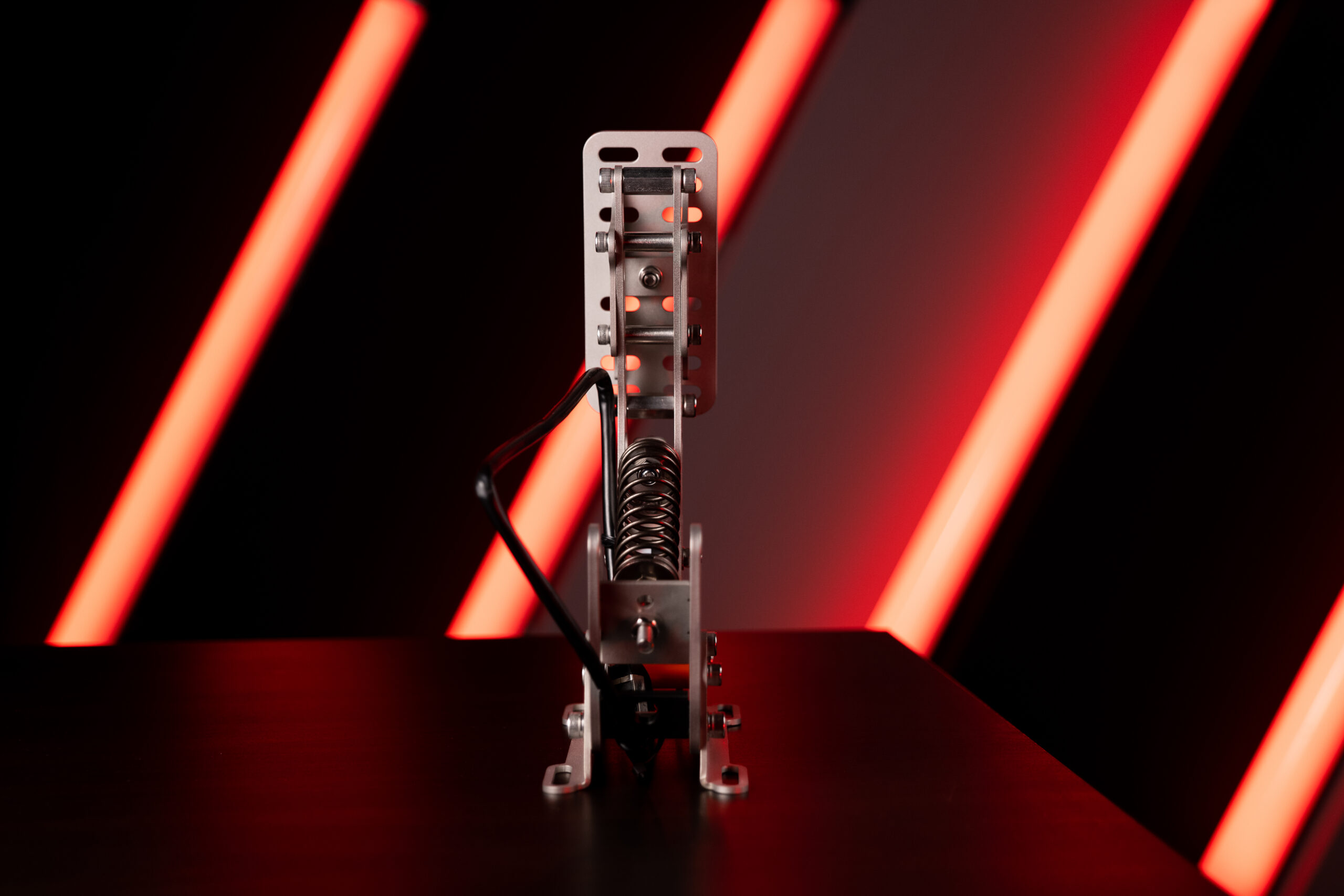

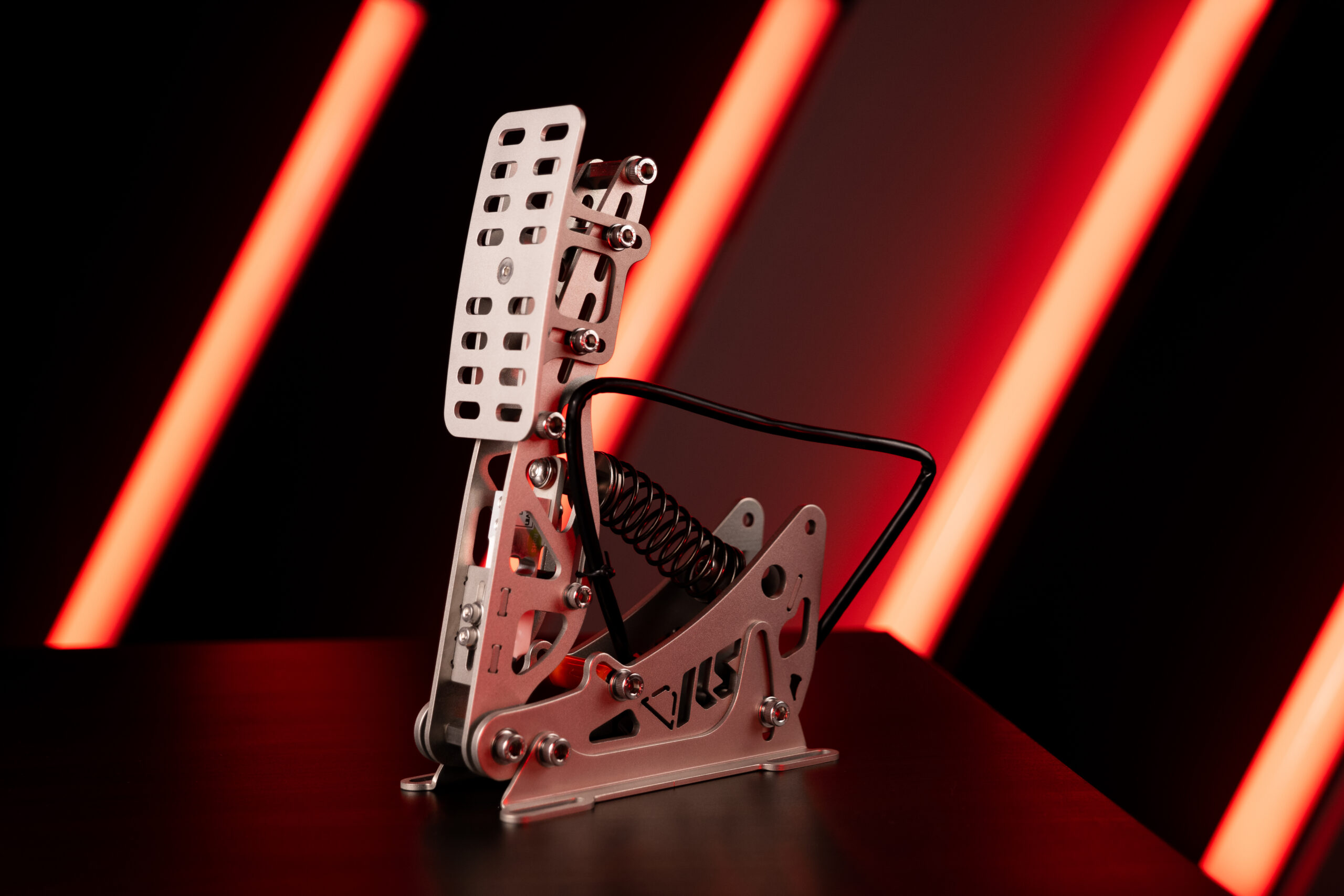

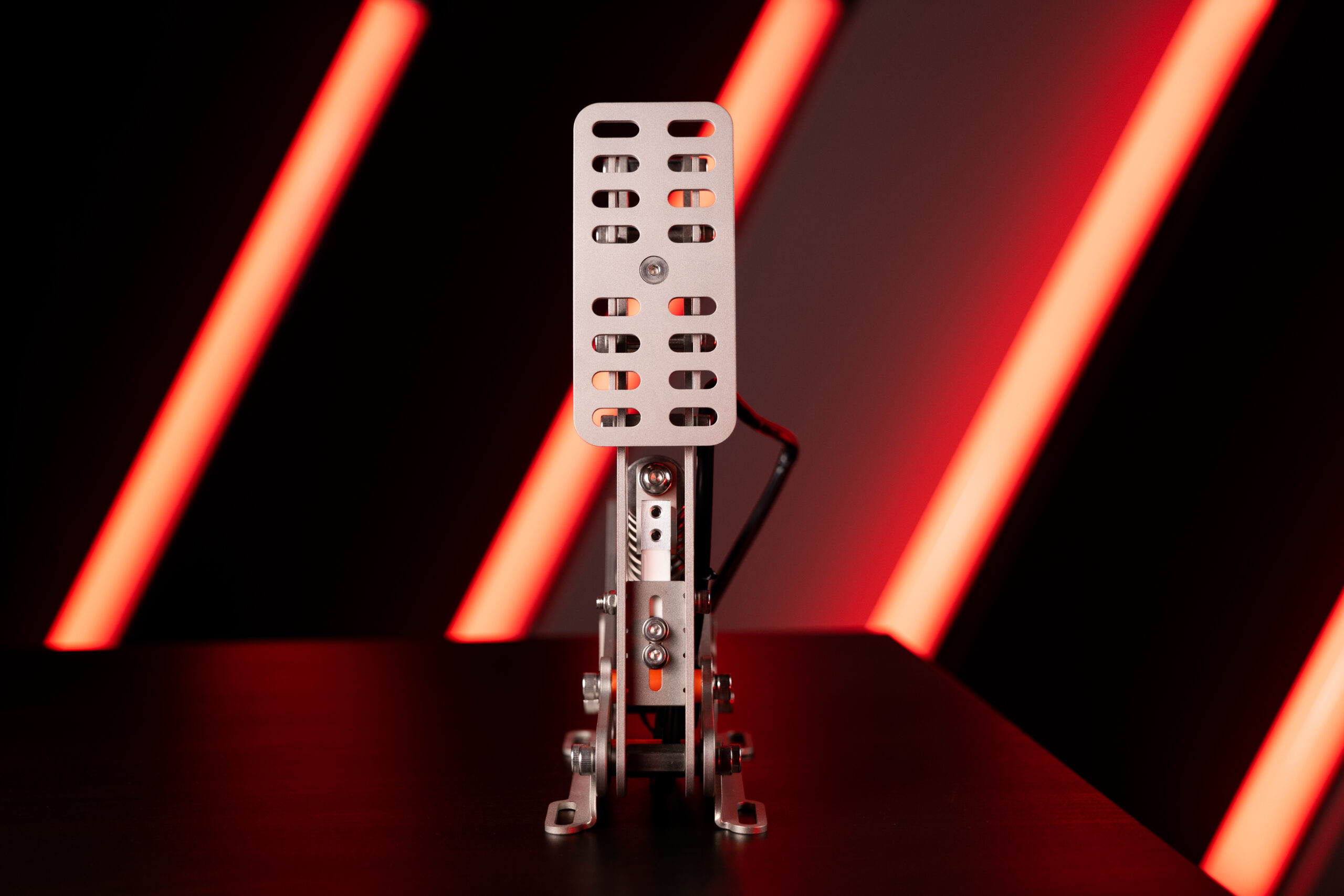

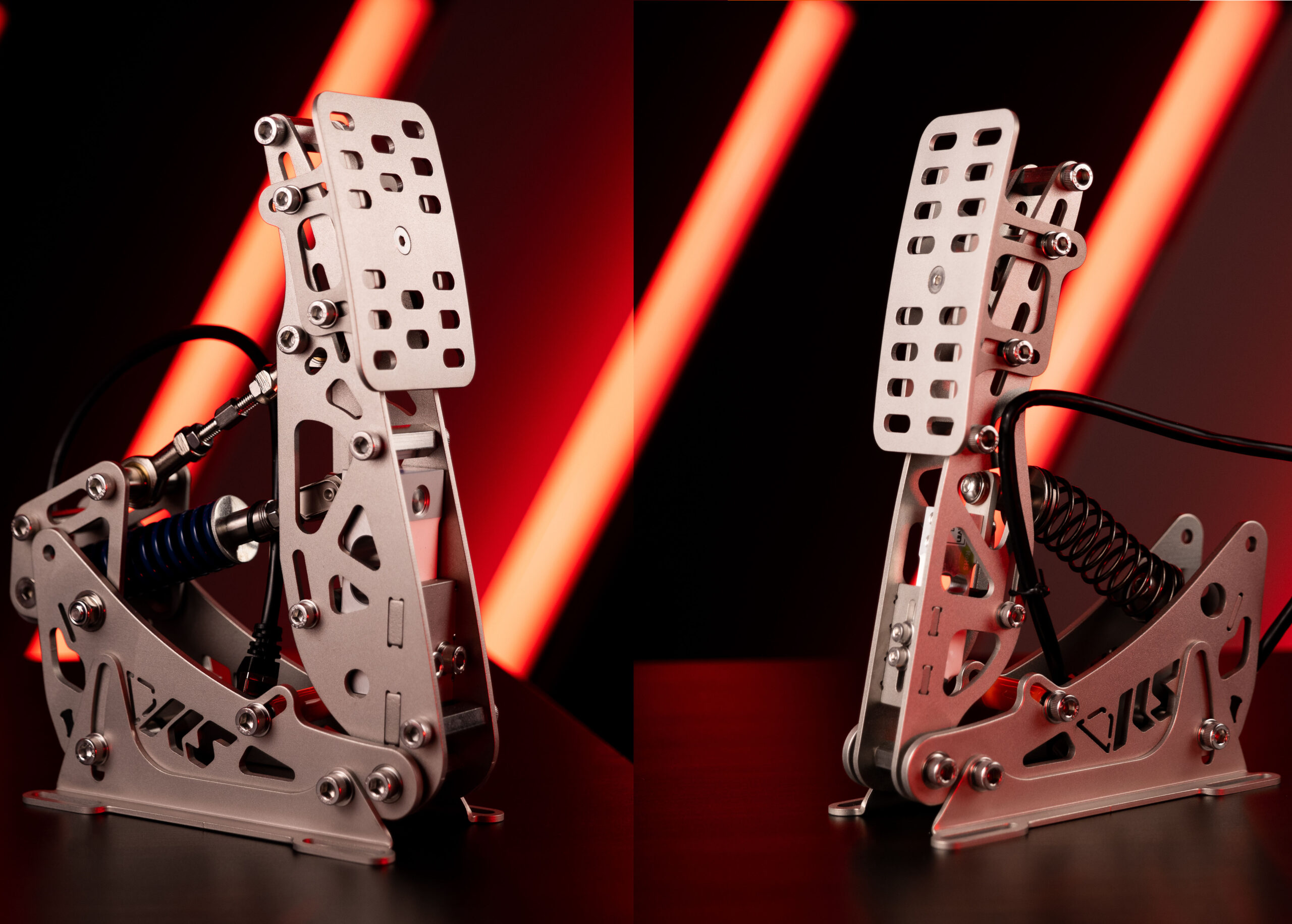

- Precise, smooth, and durable. The throttle is designed without an alignment rod to completely eliminate friction during operation. The coil spring generates a consistent and friction-free, linear response. We are confident this pedal can be configured for almost any rig requirement out there.
- The FEA optimized laser cut stainless steel construction minimizes weight. Custom PTFE inserts create smoother operation. Shielded and flanged ball bearings eliminate free-play within the construction. Coil springs use EN 10270-1 patented drawn unalloyed music wire (spring steel) for a very high yield strength and resilience against permanent deflection.
- All pedals allow for an overall tilt angle change of 21 degrees. In addition, the pedal faces themselves can be adjusted in an angle range of more than 30 degrees, as well as 20 mm depth adjustment, with even more range for the throttle face, and up to 30 mm vertical adjustment. The throttle pedal has a maximum throw of 20.3 degrees, or 58.1 mm of travel, with the pedal face in the mid position. When adjusted for minimum travel, the throw is just 7.5 degrees, or 21.5 mm. The travel will decrease by 9% and the pedal force will increase also by 9% when the face is at the minimum height and vice versa. This means a maximum configurable pedal force of 8.4 kg. In its stock configuration, the middle of the pedal face has a height of 188 mm from the base mounting point, without a heel plate. The face itself has a length of 120 mm and is 55 mm wide.

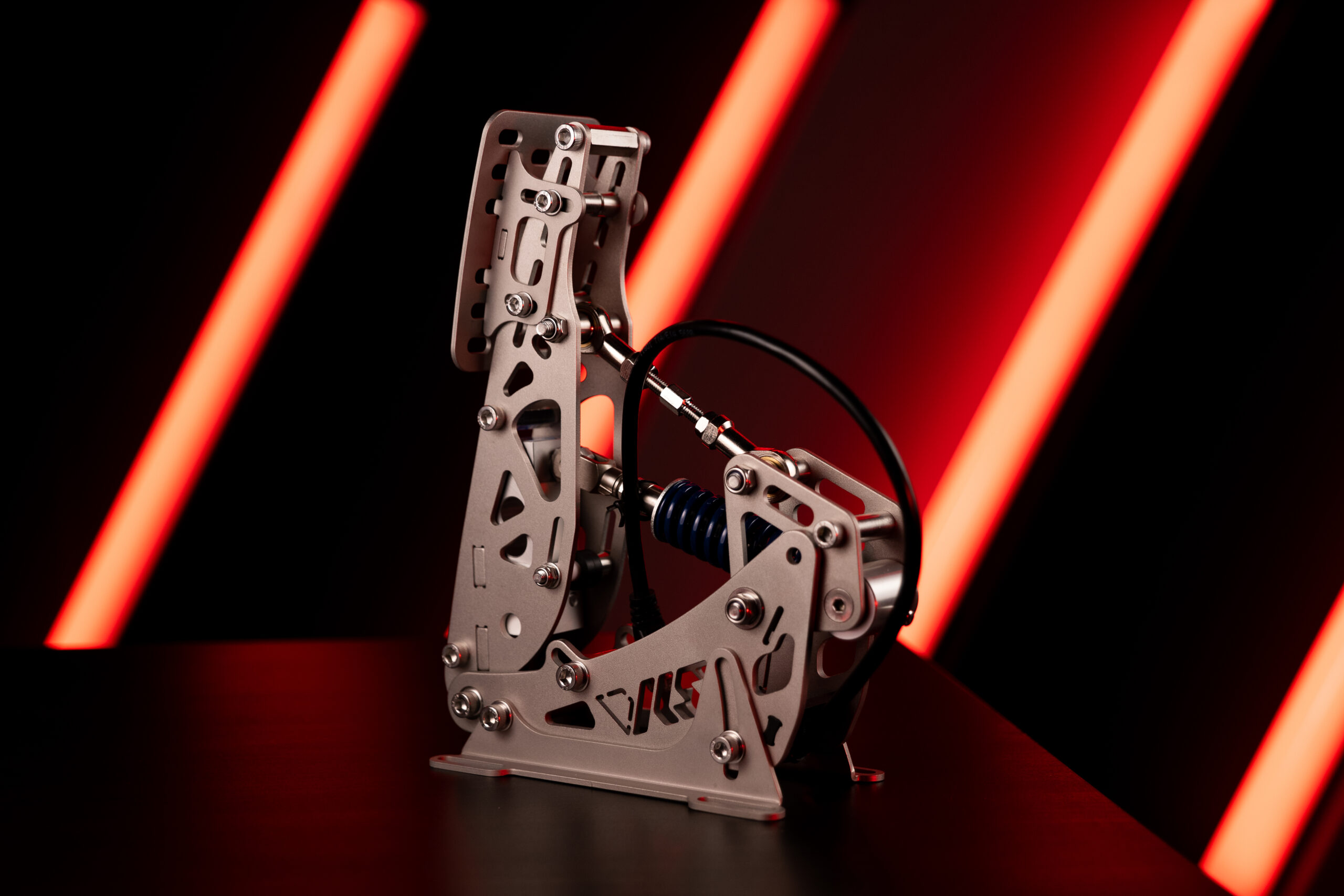

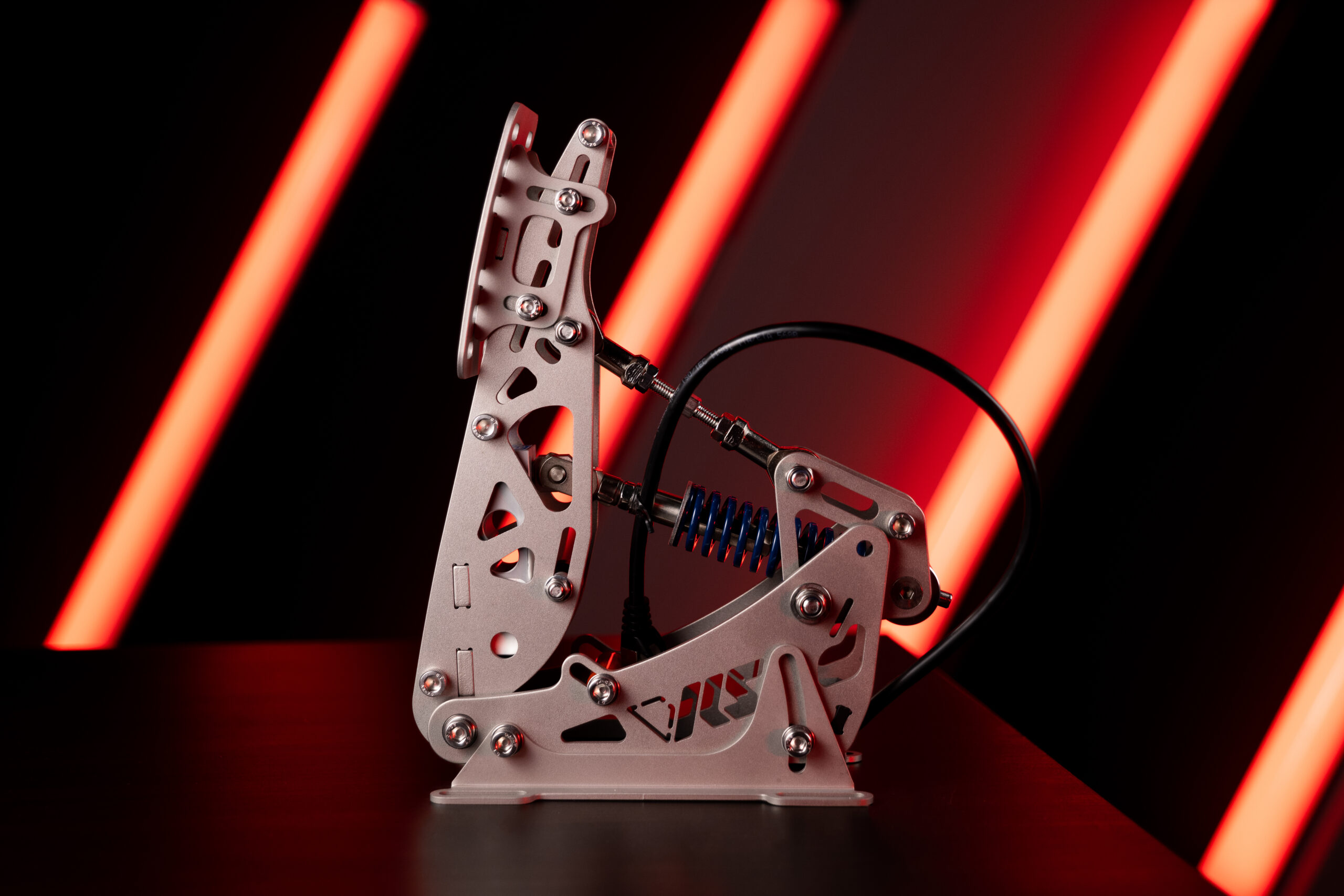

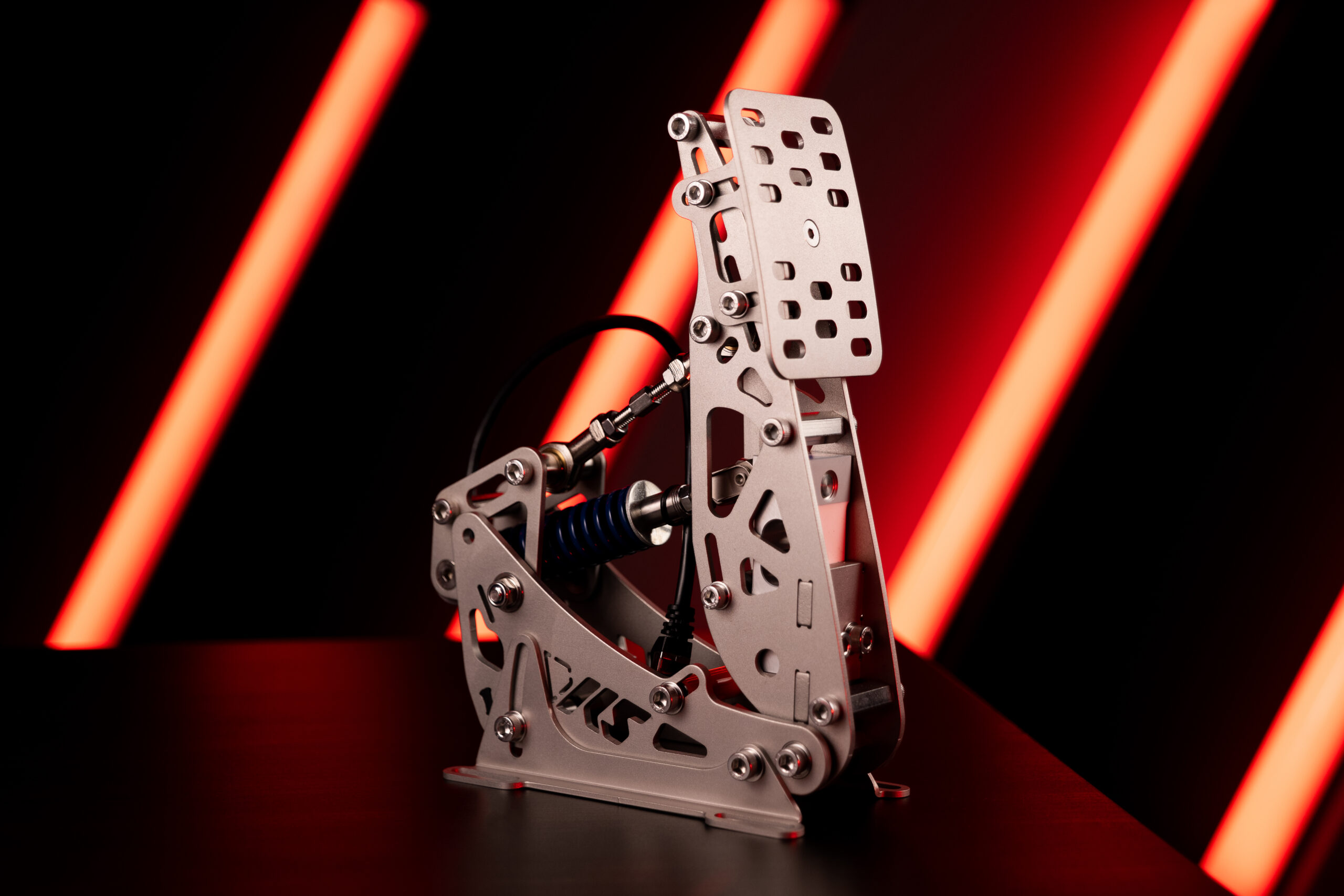

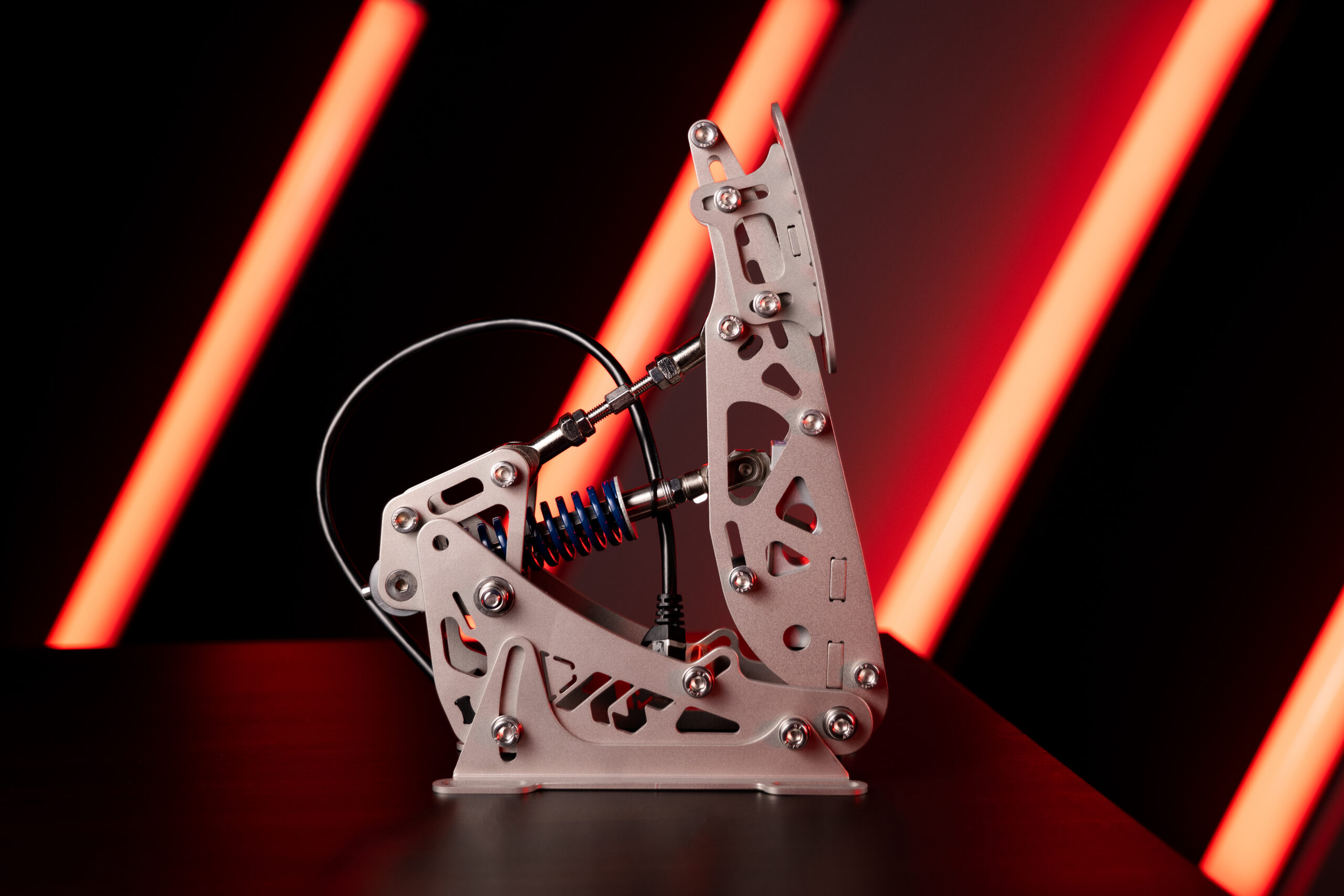

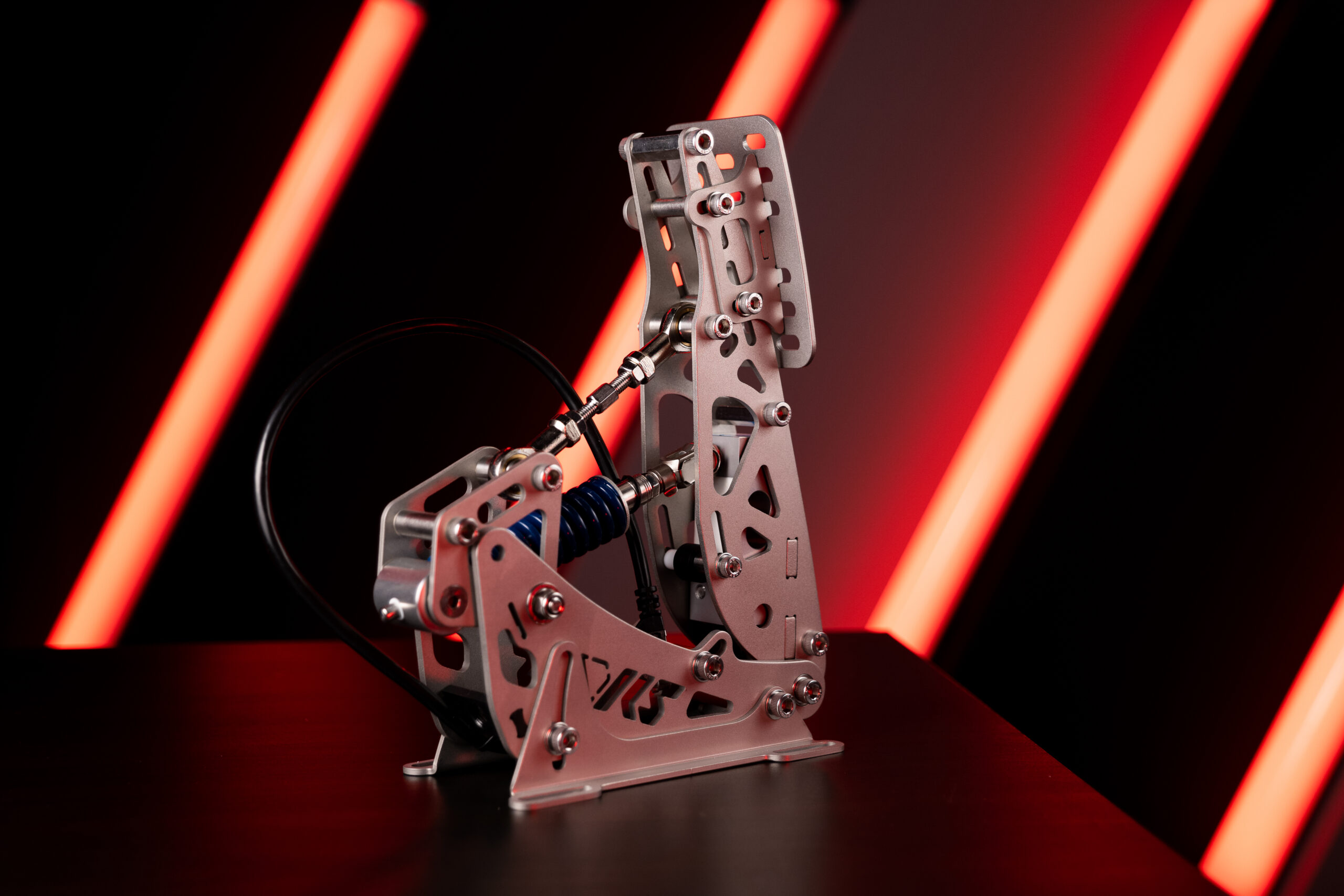

- A unique mechanical mechanism is used in combination with extremely stiff coil springs to offer a consistent pedal feel that won’t degrade over time and won’t suffer from hysteresis. This means that every time you’ll get the same response on brake release as you do during application. This same mechanism includes an adjustable tie-rod connection for an infinite range of pedal force curves. Want a soft pedal with lots of travel? We got you. Prefer a firm pedal tolerating 130kg at the face? Check. You can tune to the exact feel you need with this brake. In its stock configuration, the middle of the pedal face has a height of 200 mm from the base mounting point, without a heel plate. The face itself has a length of 100 mm and is 70 mm wide.
- Like the throttle pedal, the FEA optimized laser cut stainless steel construction minimizes weight. Custom PTFE inserts create smoother operation. Shielded and flanged ball bearings eliminate free play within the construction. High performance compression springs made exclusively from special 50 Cr V4 steel to the highest standards allow forces of 200 kg to be tolerated routinely, with ultimate reliability.
- In its stock configuration, with the blue spring fitted, the brake pedal has a maximum pedal force of 65 kg, with 16.2 degrees, or 49.6 mm of travel. This can be increased to 18.5 degrees with the shortest tie-rod setting. With the included red spring fitted, the maximum pedal force with stock settings is 130 kg, at 15 degrees and 46.1 mm of travel. Since the travel will decrease by 9% and the pedal force will increase also by 9% when the face is at the lowest height and vice versa, the maximum pedal force can be configured to reach 140 kg.

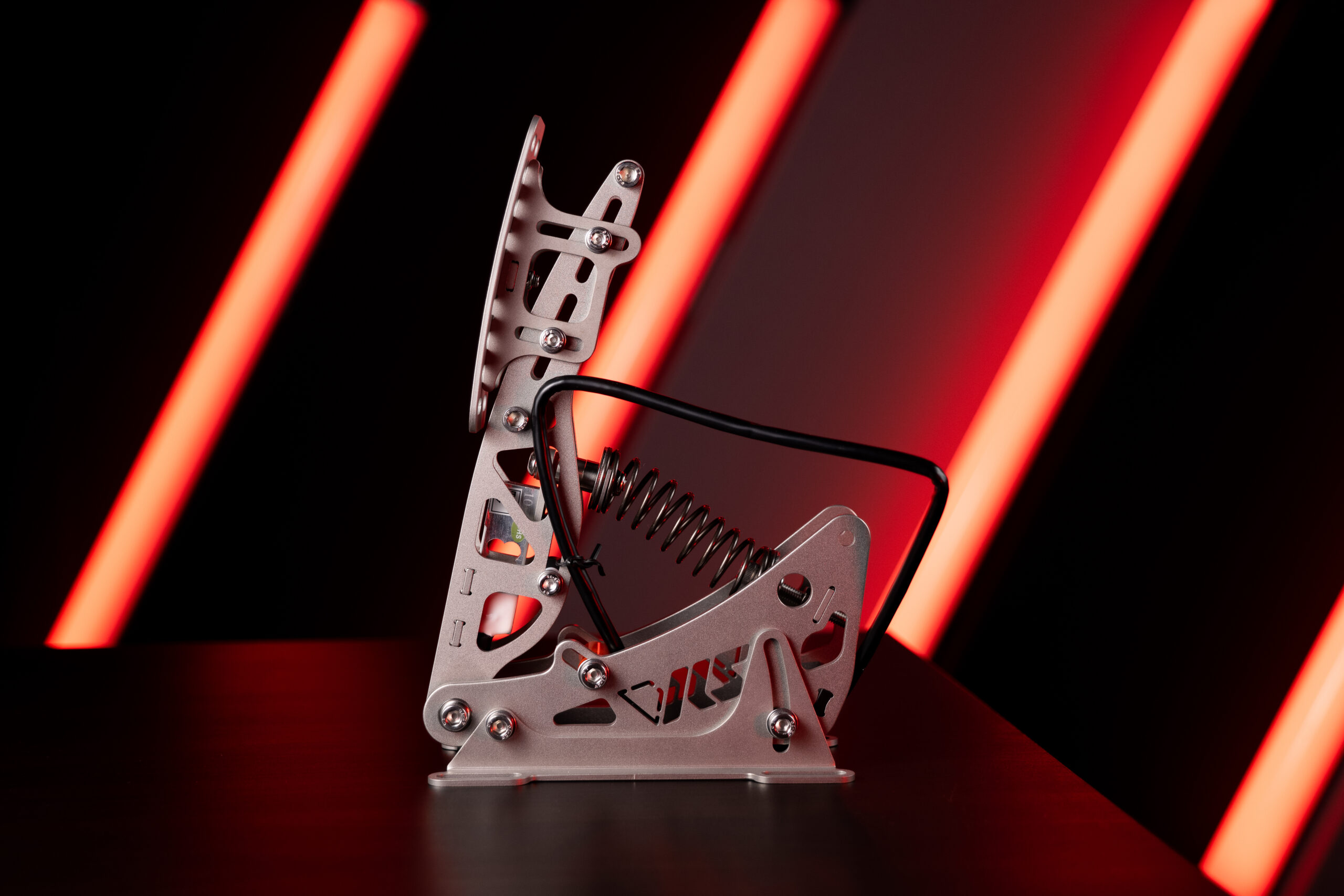

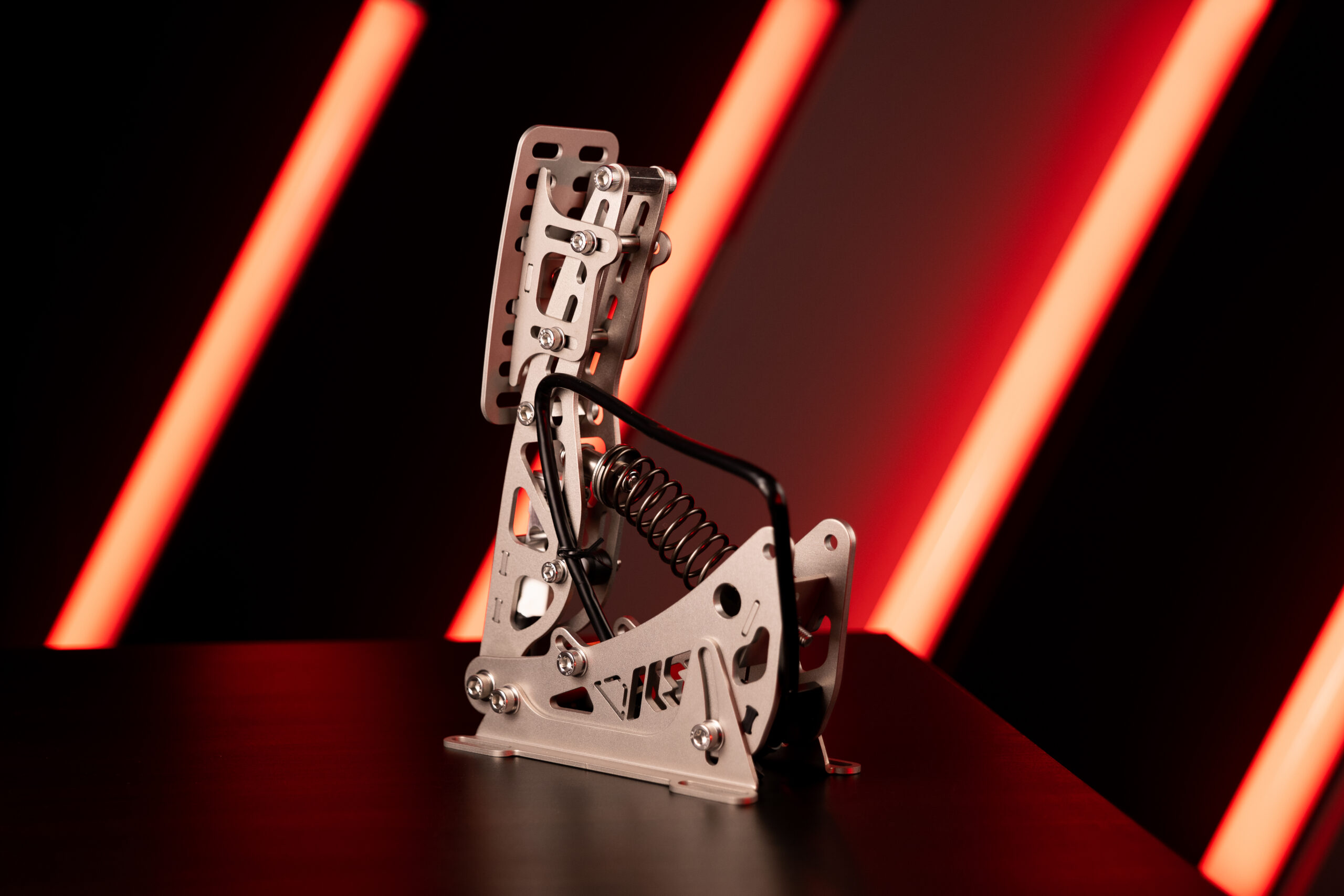

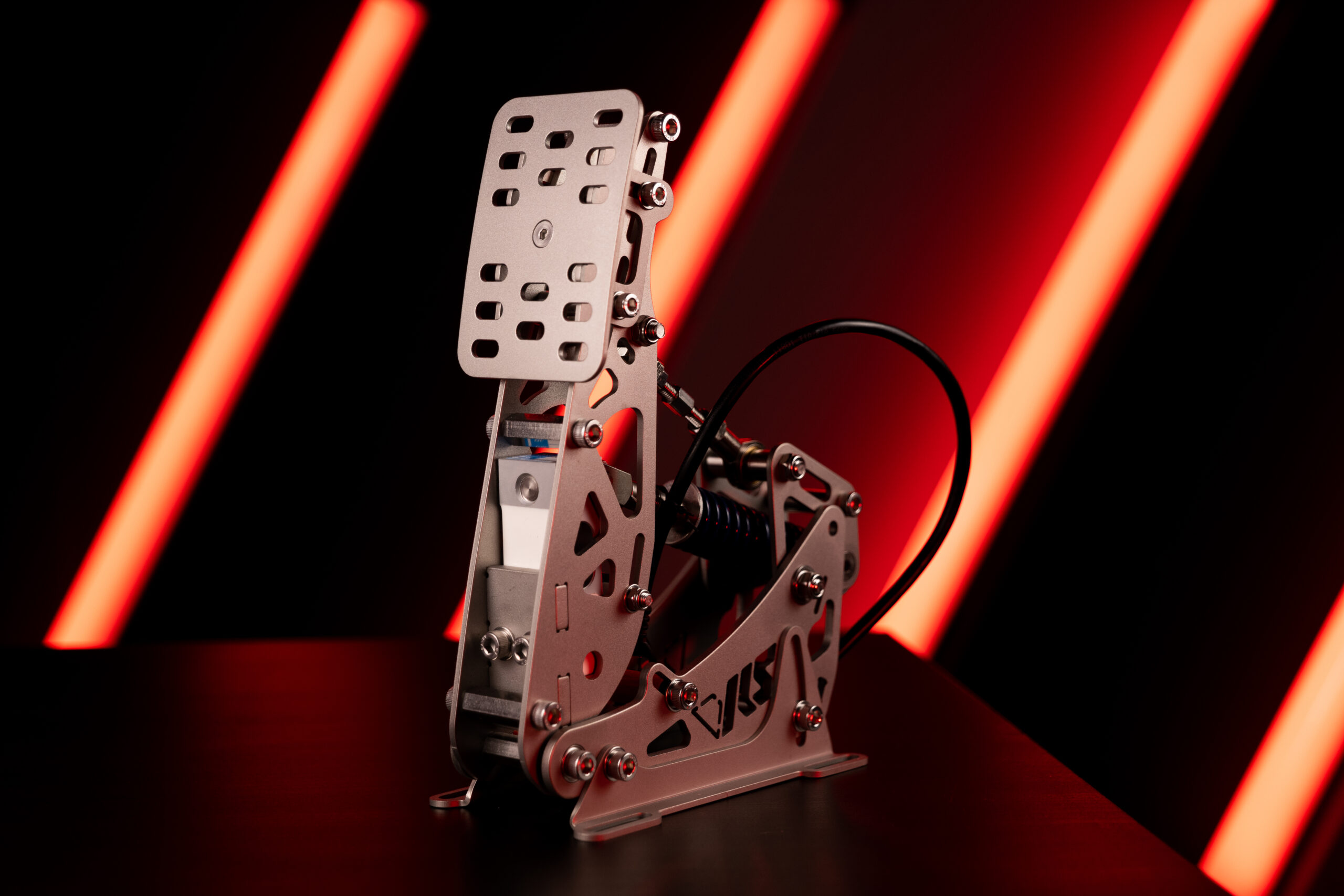

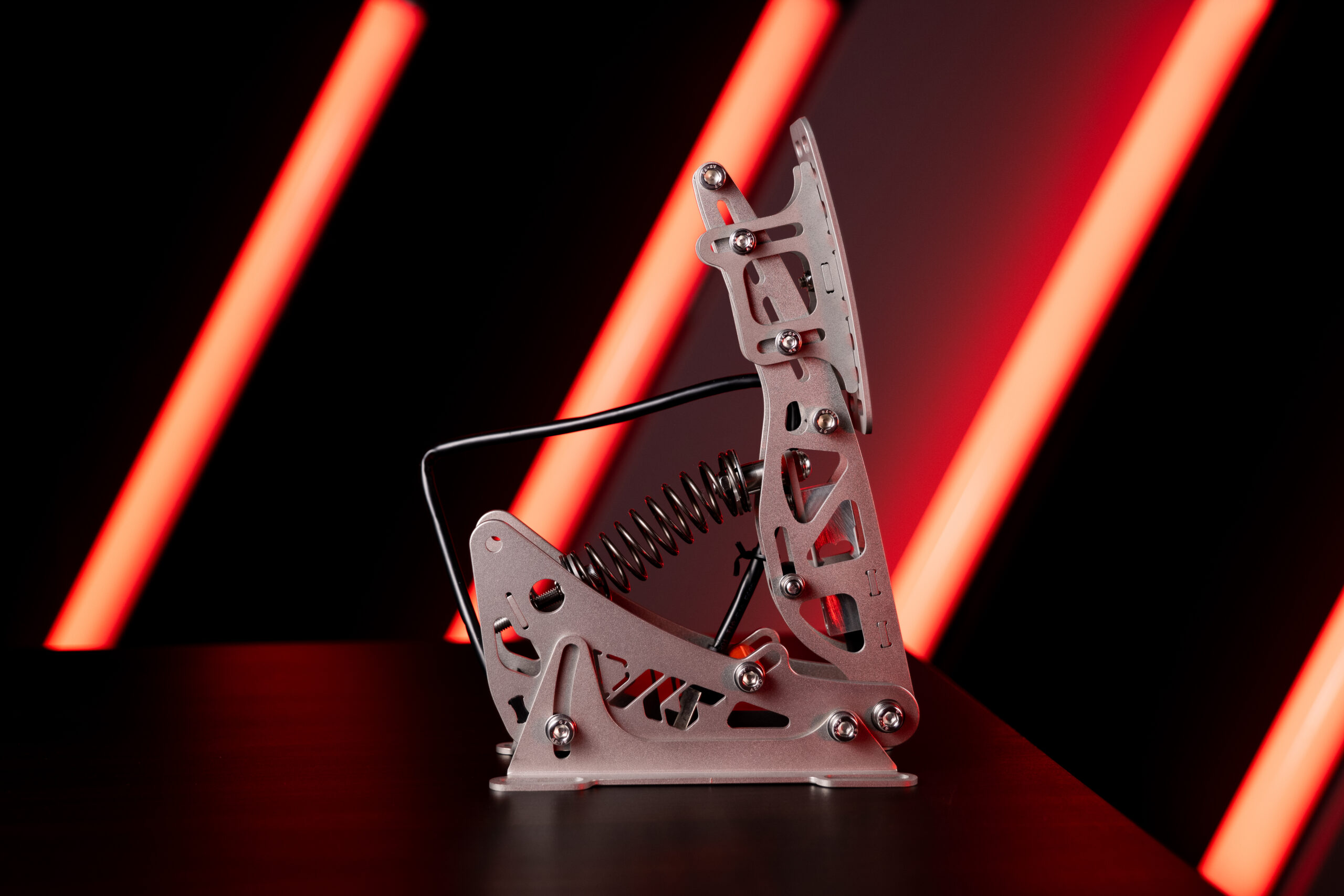

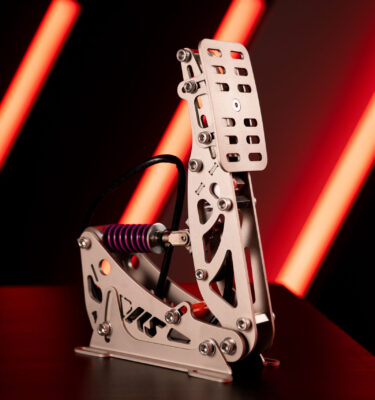

- With more than 30kg at the pedal face at its stiffest setting, this pedal recreates the feel of a serious race car. The regressive force response emulates the response of real clutch plate springs. Seamless integration via the DirectForce® Pro pedal controller into your rig setup. In its stock configuration, the middle of the pedal face has a height of 200 mm from the base mounting point, without a heel plate. The face itself has a length of 100 mm and is 55 mm wide.
- The FEA optimized laser cut stainless steel construction minimizes weight. Custom PTFE inserts create smoother operation. Shielded and flanged ball bearings eliminate free play within the construction. Coil springs out of spring steel for very high yield strength. High performance compression spring made exclusively from special 50 Cr V4 steel to the highest standards allow large forces to be tolerated routinely, with ultimate reliability.
- The clutch pedal has a maximum throw of 25.4 degrees, or 77.1 mm of travel, with the pedal face in the mid position. The peak pedal force is up to 23.5 kg in the stock configuration. When you adjust it for minimum travel, the throw will be just 12.4 degrees, or 37.8 mm. The travel will decrease by 9% and the pedal force will increase also by 9% when the face is at the minimum height and vice versa.
